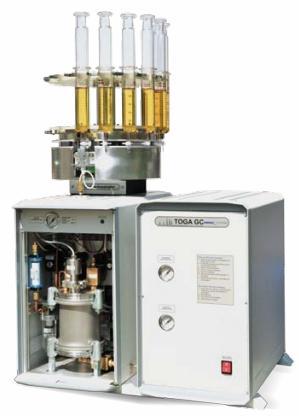

TOP-TOGA Autosampler

To make laboratory work easier, the Total Gas Analyser TOGA vacuum unit is coupled with an auto sampler holding 16 syringes.
The analyses can then be carried out over night, which doubles the capacity of the oil sample analysis.

  • 16 syringe sample capacity
  • Fully automatic procedure
  • Automation for processing all samples unattended
  • Interchangeable sample tray for 100 and 50ml glass syringes
  • Contamination-free with integrated rinsing steps
  • Rugged construction and simplicity of design
  • Integrated calibration facility

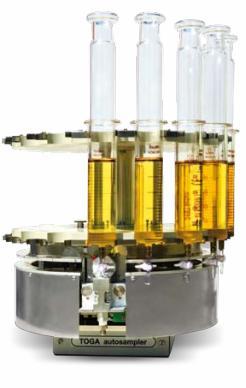

The TOP-TOGA Autosampler is an easy-to-use and rugged sample tray for full vacuum degassing of transformer oil samples. It is designed for optimum value, time saving and excellent performance. There is need to chang sample containers; once the oil sample is taken from the transformer, plug your syringe into the sample tray – absolutely contamination-free! Allows for analysis of 16 oil samples unattended!

The oil samples – taken with our contamination-free oil sampling kit – are fitted to the sample tray and the sample parameters are typed into the software. After initialising the analysis all the other steps are automatically monitored. A pressure sensor ensures the correct dosing volume and a plausibility test guarantees the vacuum tight fixing of the sample syringes. The system also offers the possibility of calibration during the measurement routine and therefore guarantees a high accuracy of the analysis.
